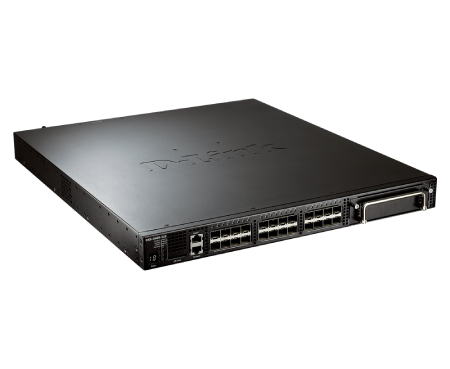

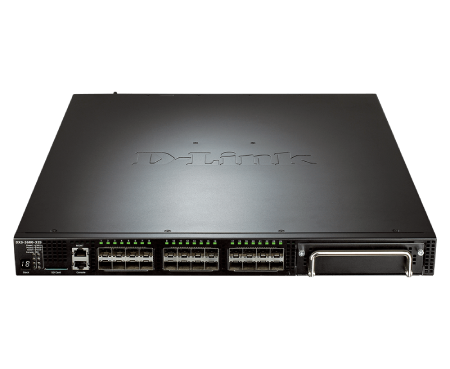

D-Link DXS-3600-32S/EEI 24-Port Layer 3 Stackable 10G Fiber Managed Switch - High-Speed Network Switch for Enterprise & Data Centers - PRE ORDER ONLY - Ideal for High-Performance Networking, Cloud Computing & Server Connectivity

Save 45%

D-Link DXS-3600-32S/EEI 24-Port Layer 3 Stackable 10G Fiber Managed Switch - High-Speed Network Switch for Enterprise & Data Centers - PRE ORDER ONLY - Ideal for High-Performance Networking, Cloud Computing & Server Connectivity

Sku: 41506134 in stock

$9392.62

$17077.5

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

11 people viewing this product right now!

Guranteed safe checkout

Description

Specifications

2.5GBase-T Interface 4 (With DXS-3600-EM-4XT)
1000Base-T Interface 8 (With DXS-3600-EM-8T)
10GBase-T Interface 4 (With DXS-3600-EM-4XT)
10G SFP+ Interface 32 (With DXS-3600-EM-8XS)
40G QSFP Interface 4 (With DXS-3600-EM-4QXS)
120G CXP Interface 2 (With DXS-3600-EM-Stack)
Auto MDI/MDIX Yes
Console Port Yes
Secure Digital (SD) Card Slot Yes
Number of Module Slots 1
40G QSFP+ ports 32
USB 2.0 port 1
RJ-45 port 1
RJ-45 Management port 1
10G SFP+ ports 24
expansion slot 1
Switch Capacity 960 Gbps
Max. Packet Forwarding Rate 714.28 Mpps
Store & Forwarding Forwading Yes
Cut Through Forwarding Yes
Acoustic 61.4 dB(A)
Maximum Heat Dissipation 300.76 BTU/hr
Dimension 440mm x 506 mm x 44mm
Maximum Power Consumption 116.8 W (without expansion module) <br>160.4 W (with DXS-3600-EM-4QXS)
Operating Altitude 1500m
Operation Humidity 0%-95% RH
Operation Temperature 0-45°C
Standby Power Consumption 88.2 Watts
Storage Humidity 0%-95% RH
Storage Temperature -40-70°C
Weight 13.08 kg
Power Input AC: 100-240V
Modular Power Supply Yes
Power Slots 2
Redundant Power Supply Yes (DXS-3600-PWR-FB, DXS-3600-PWR-BF, DXS-3600-PWRDC-FB)
CPU Speed 1200Mhz
Packet Buffer Size 9MB
FAN Yes
DRAM Size 2GB
Flash Memory Size 1GB NAND Flash, 4MB NOR Flash
Comply with RoHS 6 Yes
Power Saving By Link Status Yes
Power Saving By Cable Length Yes
Power Saving By LED Shut-Off Yes
Power Saving By Port Shut-Off Yes
Power Saving By Port Standby Yes
Power Saving By System Hibernation Yes
Physical Stacking Yes (with module DXS-3600-EM-Stack or DXS-3600-EM-4QXS)
Physical Stacking Bandwidth 480G (bidirectional) with DXS-3600-EM-Stack module 160G (bidirectional) with DXS-3600-EM-4QXS module
Units Per Physical Stack 4
Head-of-line (HOL) Blocking Prevention Yes
802.3x Flow Control Yes
MAC Address Table Size 128K
802.1D Spanning Tree (STP) Yes
802.1w Rapid Spanning Tree (RSTP) Yes
802.1s Multiple Spanning Tree (MSTP) Yes
Root Restriction Yes
BPDU Restriction Yes
802.1AX Link Aggregation Yes
802.3ad Link Aggregation Yes
Max Port Per Link Aggregation Group 12
Multiple ERPS Ring Yes
RSPAN Yes
Port Mirroring Yes
Flow-based (ACL) mirroring Yes
Jumbo Frame 12K Bytes
Loopback Detection (LBD) Yes
L2 Protocol Tunneling Yes
IGMP Snooping Yes
Max IGMP Snooping Groups 4K
IGMP Proxy Reporting Yes
IGMP Snooping Fast Leave Yes
MLD Snooping Yes
MLD Snooping Groups 4K
MLD Snooping Fast Leave Yes
MLD Proxy Reporting Yes
VLAN Groups 4K
Port-based VLAN Yes
802.1Q VLAN Yes
802.1v Protocol-based VLAN Yes
MAC-based VLAN Yes
Subnet-based VLAN Yes
GVRP Yes
Double VLAN (Q in Q) Yes
Selective Q in Q Yes
VLAN Translation Yes
ISM VLAN (Multicast VLAN) Yes
Private VLAN Yes
Super VLAN Yes
VLAN trunking Yes
IP Interface Yes
Max Number of IP Interface 256
Loopback Interface Yes
ARP Yes
