Features:
Common

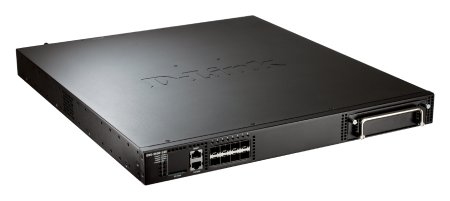

• Interfaces: 8 fixed 10-Gigabit ports with one expansion module
• Console port: port with RJ-45 connector to control the (out-of-band)
• Control Port: Port 10/100/1000 Base-T with RJ-45 connector for remote management (out-of-band)
• Slot for SD-card
DDM (Digital Diagnostics Monitoring) 1
Yes I Am
Performance
• Switching Matrix: 480 Gbit / s
• Max. packet rate: 357,14 Mpps
• Buffer size packages: 9 MB
• MAC-address table: 128 K
Copies of the extended function (EI)
Multicast Layer 3
• Size tables multicast: 2K
• IGMP v1, v2, v3
• PIM-SM
• PIM-DM
• The PIM-Sparse-Dense
• PIM-SSM
• DVMRP v3
• MLD v1 / v2 1
MPLS
• LDP
• MPLS LSP trigger filtering
• Multiprotocol Label Switching (MPLS label-forwarding)
• MPLS QoS
• MPLS ping and traceroute
• L2 protocol tunneling through PW
• VPWS
• VPLS
• PW Redundancy
Function level 3
• IPv6 Tunneling 1
- Static
- ISATAP
- GRE
- 6to4
• VRRP
Layer 3 VPN
• MPLS / BGP L3 VPN
• Virtualization Technology VRF-Lite
• MP-BGP
• VRF aware application
Layer 3 routing
• Supports up to 16K entries routes IPv4 / IPv6
- Max. 16K IPv4 records
- Max. 8K IPv6 records 1
• Supports 8K L3 shared items sent to IPv4 / IPv6
- Max. 8K IPv4 records
- Max. 4K IPv6 records 1
• RIP
- RIP v1 / v2
- RIPng 1
• OSPF
- OSPF v2
- OSPF v3 1
- Passive OSPF interface
- Stub / NSSA Area
- OSPF Equal Cost Route
• BGPv4
• Route redistribution
• IP Directed Broadcast
• Policy-based routing 1
